| Place of Origin: | Dongguan China |
|---|---|
| Hàng hiệu: | SANNI |
| Operating Temperature: | -25℃-85℃ | Mounting Type: | Through Hole/DIP Mount |
|---|---|---|---|
| Shaft Diameter: | 6mm Or Customized | Shaft Length: | 6mm-20mm Normal Or Customized |
| Dielectric Strength: | 500VAC | Resistance: | 300Ω-3MKΩ |
| Shaft Material: | Plastic | Gang: | Single |
| Làm nổi bật: | 500VAC dielectric rotary potentiometer,6mm to 20mm shaft potentiometer,customized resistance control potentiometer |
||

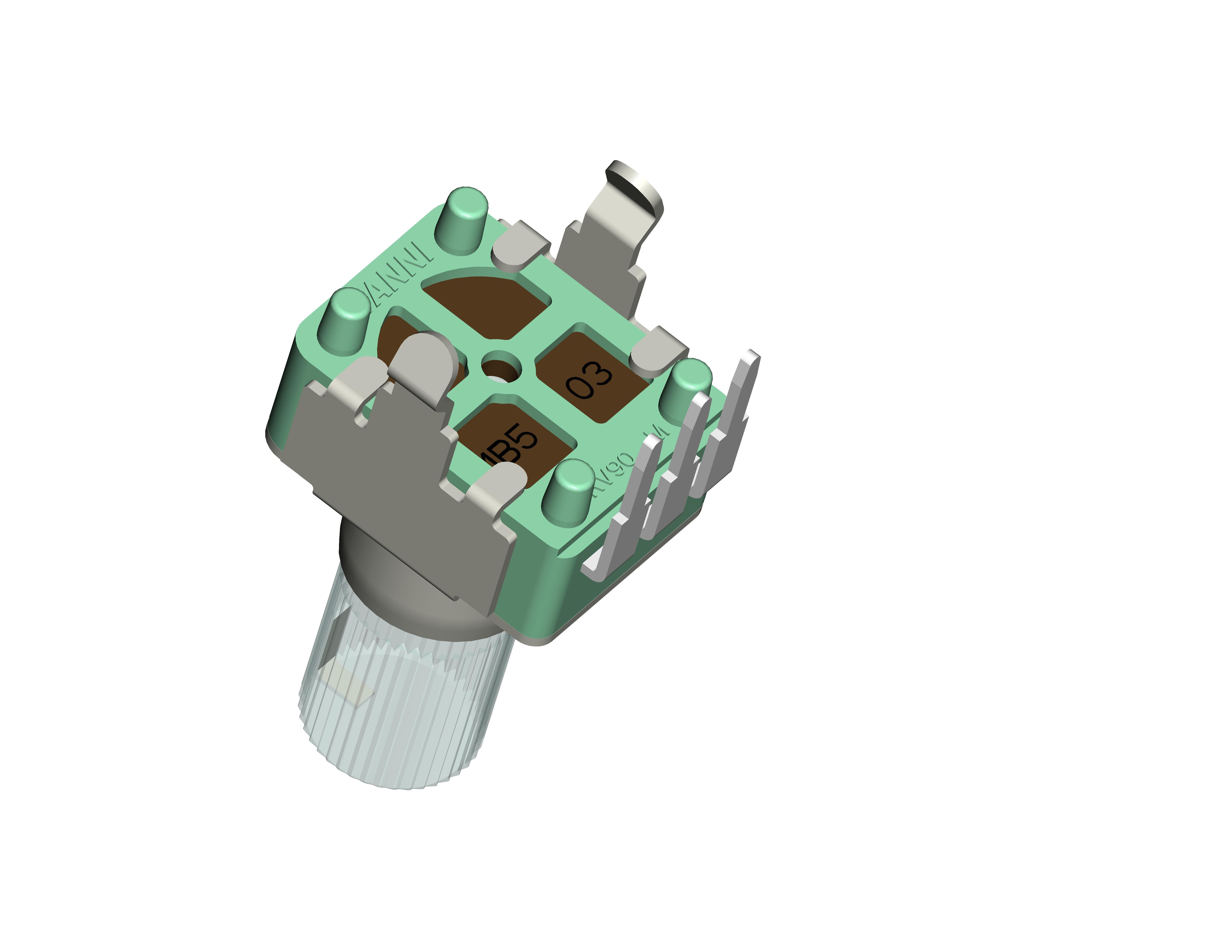

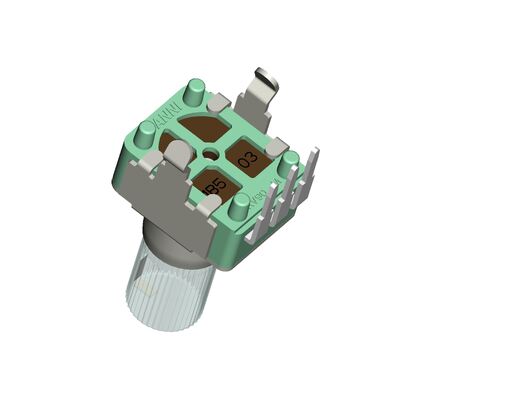

The Rotary Potentiometer is a versatile and essential component widely used in electronic circuits for precise control of resistance. Known also as a Rotary Linear Variable Resistor, this device allows users to manually adjust resistance values smoothly and accurately, making it an indispensable tool in various applications ranging from audio equipment to industrial machinery. Its design and functionality provide reliable performance, ensuring consistent operation under different conditions.
One of the standout features of this Rotary Potentiometer is its resistance tolerance of ±20%. This tolerance level ensures that the resistance value remains within an acceptable range, providing dependable performance in circuit adjustments. Such precision is crucial for applications that demand fine-tuning and calibration, where even slight variations in resistance can affect overall system functionality. The ±20% tolerance strikes a balance between cost-effectiveness and accuracy, making this potentiometer suitable for both commercial and hobbyist projects.
The terminal type of this Rotary Potentiometer is a PCB Lug, which facilitates easy and secure mounting onto printed circuit boards. PCB Lugs are designed to provide stable mechanical and electrical connections, enhancing the durability and reliability of the potentiometer in various electronic assemblies. This feature makes installation straightforward and ensures that the component remains firmly in place even in environments subject to vibration or mechanical stress.
Operating temperature is a critical specification for any electronic component, and this Rotary Potentiometer operates efficiently within a temperature range of -25℃ to 85℃. This wide operating temperature range makes it suitable for use in diverse environments, from cold industrial settings to warmer indoor applications. The potentiometer’s ability to maintain consistent performance despite temperature fluctuations underscores its robustness and adaptability.
The shaft diameter of the Rotary Potentiometer is 6mm, a common size that offers compatibility with a variety of knobs and adjustment tools. Additionally, customization options are available for the shaft diameter, allowing users to select sizes that best fit their specific design requirements. This flexibility in customization enhances the potentiometer’s usability across different projects and applications, providing tailored solutions for unique needs.
As a Rotary Manual Adjustment Tool, this potentiometer is designed for ease of use, enabling users to control electrical resistance by simply rotating the shaft. This manual adjustment capability makes it an excellent choice for tuning circuits, adjusting signal levels, and calibrating devices. Its smooth rotation mechanism ensures precise control over resistance changes, which is vital for applications such as volume controls, light dimmers, and sensor calibration.
In summary, the Rotary Potentiometer is a highly reliable and adaptable Rotary Variable Resistor that combines precision, durability, and ease of use. Its ±20% resistance tolerance ensures accurate performance, while the PCB Lug terminal type guarantees secure mounting. The broad operating temperature range makes it suitable for a wide array of environments, and the customizable 6mm shaft diameter provides versatility in application. Whether you are designing audio equipment, industrial controls, or electronic prototypes, this Rotary Linear Variable Resistor offers the manual adjustment capabilities and robust construction necessary for precise and dependable operation.
Overall, this Rotary Potentiometer stands out as a critical component for anyone seeking a reliable Rotary Variable Resistor with manual adjustment functionality. Its well-balanced specifications and user-friendly design make it an excellent choice for both professionals and enthusiasts aiming to achieve optimal performance in their electronic projects.
| Product Type | Rotary Potentiometer Device / Rotary Linear Variable Resistor / Rotary Variable Resistor |
| Power Rating | 0.05W |
| Insulation Resistance | 100MΩ Min |
| Rotational Life | 10,000 Cycles |
| Gang | Single |
| Dielectric Strength | 500VAC |
| Shaft Length | 6mm-20mm Normal Or Customized |
| Resistance | 300Ω-3MΩ |
| Terminal Type | PCB Lug |
| Shaft Diameter | 6mm Or Customized |
| Material | Plastic & Metal |
The SANNI Rotary Potentiometer, manufactured in Dongguan, China, is a versatile and reliable component designed for a wide range of application occasions and scenarios. Known for its precision and durability, this Rotary Multi-Turn Potentiometer is ideal for use in electronic devices that require fine-tuned analog adjustments. Whether you are working on audio equipment, industrial control systems, or instrumentation panels, the SANNI Rotary Potentiometer provides excellent performance and stability even under demanding conditions.
One of the primary application scenarios for the Rotary Linear Variable Resistor is in audio equipment such as amplifiers, mixers, and equalizers. Its smooth and precise rotary action allows users to adjust volume, tone, and balance settings accurately. The multiple shaft types available—round, flat, and knurled—offer flexibility in design and user interface, making it suitable for both professional and consumer electronics.
In industrial environments, the SANNI Rotary Analog Adjustment Device excels due to its robust construction and wide operating temperature range of -25℃ to 85℃. This enables the potentiometer to function reliably in harsh conditions, including outdoor installations or machinery operating in fluctuating temperature settings. The high dielectric strength of 500VAC ensures excellent electrical insulation and safety, which is critical in industrial control panels and automation systems.
Moreover, the PCB lug terminal type makes the Rotary Potentiometer easy to mount on printed circuit boards, facilitating efficient assembly and maintenance. This feature is particularly beneficial in mass production settings or custom electronic projects where space and reliability are key considerations.
Further application occasions include laboratory equipment, measurement instruments, and consumer electronics, where precise analog control is necessary. The SANNI Rotary Potentiometer’s ability to provide smooth and consistent resistance changes makes it a preferred choice for adjusting parameters such as brightness, speed, and frequency in various devices.
Overall, the SANNI Rotary Multi-Turn Potentiometer and Rotary Linear Variable Resistor stand out as dependable Rotary Analog Adjustment Devices suitable for a broad spectrum of applications. Their combination of high dielectric strength, multiple shaft options, PCB lug terminals, and wide operating temperature range ensures they meet the rigorous demands of modern electronic designs across different industries.
SANNI offers professional product customization services for our Rotary Potentiometer, a high-quality Rotary Analog Adjustment Device. Manufactured in Dongguan, China, this Rotary Electrical Position Sensor is designed to meet your specific requirements with precision and reliability.
Our Rotary Electrical Potentiometer features a durable plastic and metal construction, ensuring long-lasting performance even in demanding environments. It operates efficiently within a temperature range of -25℃ to 85℃, making it suitable for various industrial and electronic applications.
With a power rating of 0.05W and a resistance tolerance of ±20%, this device guarantees stable and accurate electrical adjustments. Additionally, the potentiometer boasts a rotational life of 10,000 cycles, providing consistent functionality over extended use.
Choose SANNI for customizable solutions that enhance your projects with our expertly engineered Rotary Analog Adjustment Devices, Rotary Electrical Position Sensors, and Rotary Electrical Potentiometers tailored to your needs.
For technical support and services related to our Rotary Potentiometer products, please ensure you have the product model number and specifications ready. Our technical support team can assist you with installation guidance, troubleshooting, calibration, and maintenance tips to optimize performance.
If you encounter any issues during the use of the Rotary Potentiometer, we recommend checking the wiring connections, verifying the power supply, and ensuring the device is within the specified operating environment.
Replacement parts and repair services are available to extend the life of your Rotary Potentiometer. Please review the product warranty terms to understand the coverage and service options.
For product documentation, including datasheets, user manuals, and application notes, please refer to our official website or product support portal.
We are committed to providing high-quality support to ensure your complete satisfaction with our Rotary Potentiometer products.
Product Packaging: Each rotary potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge. The component is then secured in a sturdy cardboard box with protective padding to avoid any mechanical shock during transit. The packaging is labeled with product specifications, batch number, and handling instructions to ensure proper identification and care.
Shipping: We offer reliable shipping options worldwide, including standard and expedited services. All orders are processed within 1-2 business days and shipped with tracking information provided. Our shipping partners ensure timely and safe delivery of the rotary potentiometers to your doorstep. For bulk orders, we provide customized shipping solutions to meet your requirements.
Q1: What is the brand name of this rotary potentiometer?
A1: The brand name of this rotary potentiometer is SANNI.
Q2: Where is the SANNI rotary potentiometer manufactured?
A2: The SANNI rotary potentiometer is manufactured in Dongguan, China.
Q3: What types of applications are suitable for the SANNI rotary potentiometer?
A3: The SANNI rotary potentiometer is suitable for various applications including audio equipment, industrial controls, and electronic devices requiring adjustable resistance.
Q4: What is the operating temperature range for the SANNI rotary potentiometer?
A4: The typical operating temperature range for the SANNI rotary potentiometer is -40°C to 85°C, making it suitable for most environmental conditions.
Q5: How do I connect the SANNI rotary potentiometer to my circuit?
A5: The SANNI rotary potentiometer usually has three terminals: two for the resistor ends and one for the wiper. Connect the outer terminals to your voltage source and ground, and the wiper terminal to the input of your device to adjust the resistance as needed.
