| Place of Origin: | Dongguan China |
|---|---|
| Hàng hiệu: | SANNI |
| Rotational Life: | 10,000 Cycles | Dielectric Strength: | 500VAC |
|---|---|---|---|
| Shaft Type: | Round/Flat/knurled | Shaft Diameter: | 6mm Or Customized |
| Resistance Tolerance: | ±20% | Power Rating: | 0.05W |
| Operating Temperature: | -25℃-85℃ | Dimension: | 9mm |
| Làm nổi bật: | knurled shaft rotary potentiometer,300Ω to 3MΩ potentiometer,electronic circuit tuning potentiometer |
||

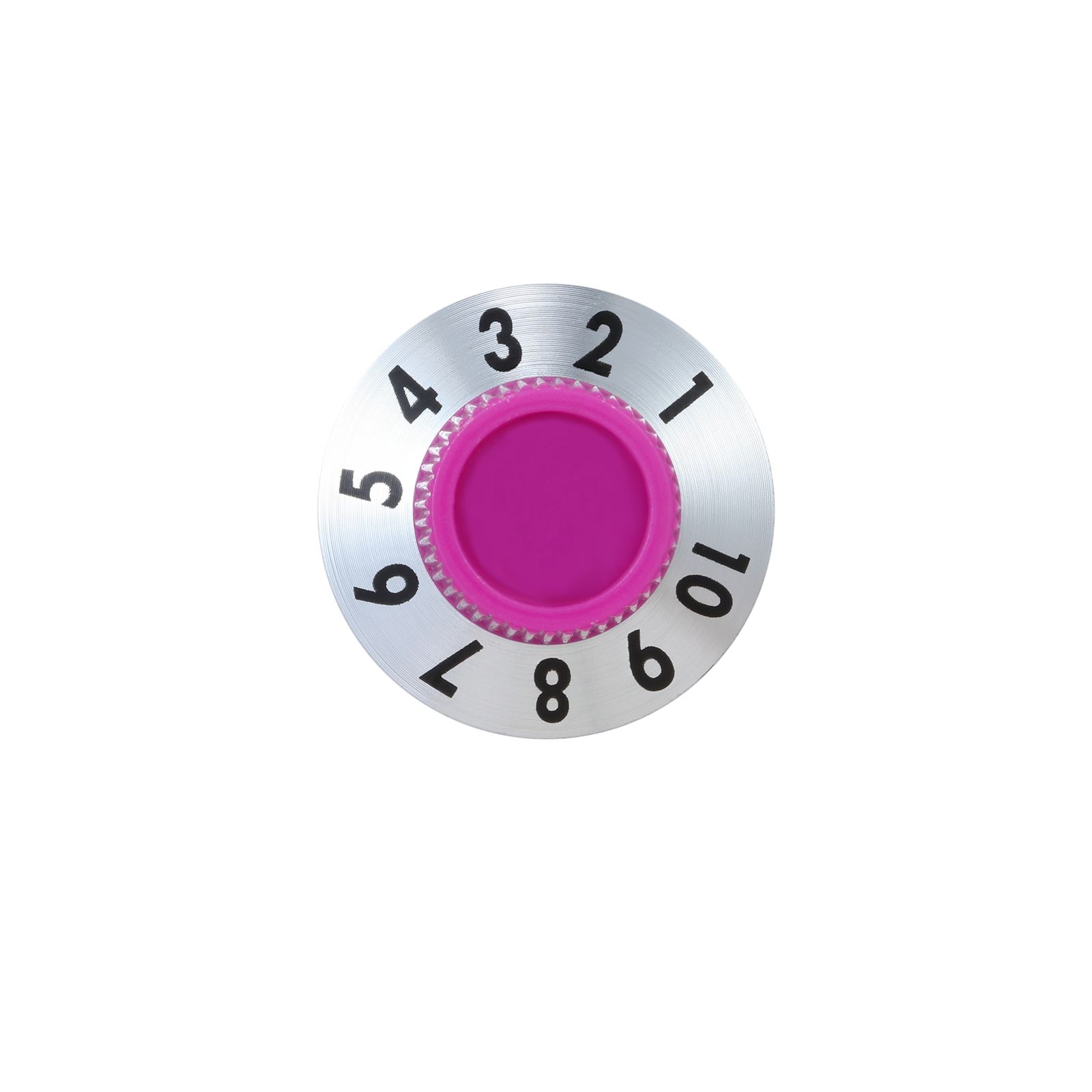

The Rotary Potentiometer is a highly reliable and versatile component widely used in electronic circuits as a Rotary Electrical Position Sensor. It functions as a Rotary Variable Resistor, allowing precise manual adjustment of resistance values to control voltage or current flow within a circuit. This potentiometer is specially designed to provide smooth and accurate rotational control, making it an ideal Rotary Manual Adjustment Tool for various applications including audio equipment, instrumentation, and control devices.
One of the key features of this Rotary Potentiometer is its Through Hole/DIP Mount design, which ensures easy and secure installation on printed circuit boards (PCBs). The Through Hole mounting style offers robust mechanical stability, making it suitable for applications where durability is essential. The DIP Mount configuration simplifies assembly and soldering processes, ensuring reliable electrical connections through the PCB Lug terminals. These PCB Lug terminals are designed for easy soldering and provide excellent contact integrity, enhancing the overall performance of the potentiometer in a circuit.
The shaft of the potentiometer is made from high-quality plastic material, which contributes to its lightweight construction and corrosion resistance. The plastic shaft provides smooth rotational movement and is designed to withstand repeated manual adjustments without degrading performance. This makes the rotary potentiometer an excellent choice for applications that require frequent tuning or calibration. The ergonomic design of the shaft also allows for comfortable grip and precise control, further enhancing its utility as a Rotary Manual Adjustment Tool.
In terms of electrical properties, this Rotary Potentiometer boasts a dielectric strength of 500VAC, ensuring it can safely operate under high voltage conditions without the risk of insulation breakdown. This high dielectric strength makes the potentiometer suitable for use in circuits where voltage spikes or surges may occur, providing added reliability and safety. The robust insulation characteristics help protect both the potentiometer and the overall electronic system from potential damage caused by electrical stress.
The operating temperature range of this Rotary Potentiometer spans from -25℃ to 85℃, allowing it to function effectively in a wide variety of environmental conditions. Whether used in cold climates or warmer industrial settings, the potentiometer maintains consistent performance without compromising accuracy or durability. This broad temperature tolerance makes it an ideal component for applications that demand reliable operation in diverse and sometimes harsh environments.
Overall, this Rotary Potentiometer combines essential features such as Through Hole/DIP Mount capability, a durable plastic shaft, PCB Lug terminals, high dielectric strength, and a wide operating temperature range to deliver exceptional performance as a Rotary Electrical Position Sensor and Rotary Variable Resistor. Its user-friendly design and robust construction make it an indispensable Rotary Manual Adjustment Tool for engineers, technicians, and hobbyists alike. Whether you are developing new electronic devices or repairing existing equipment, this potentiometer offers the precision, reliability, and ease of use needed to achieve optimal results in your projects.
| Product Name | Rotary Potentiometer |
| Gang | Single |
| Material | Plastic & Metal |
| Shaft Type | Round / Flat / Knurled |
| Power Rating | 0.05W |
| Mounting Type | Through Hole / DIP Mount |
| Shaft Diameter | 6mm Or Customized |
| Operating Temperature | -25℃ to 85℃ |
| Insulation Resistance | 100MΩ Min |
| Resistance Tolerance | ±20% |
The SANNI Rotary Potentiometer, proudly manufactured in Dongguan, China, is an essential component widely used across various electronic applications. Known for its precision and durability, this Rotary Voltage Divider Potentiometer offers resistance values ranging from 300Ω to 3MΩ, making it highly versatile for different circuit requirements. Available with shaft types including round, flat, and knurled, and mounting options such as Through Hole and DIP Mount, the SANNI Rotary Potentiometer is designed to fit seamlessly into numerous electronic devices and control systems.
One common application of the SANNI Rotary Potentiometer is in audio equipment, where it functions as a rotary analog adjustment device to control volume, tone, and balance. Its smooth and reliable multi-turn adjustment capability ensures precise control, making it ideal for use in professional audio mixers, amplifiers, and home stereo systems. The 9mm dimension allows it to be compact while still easy to operate, providing users with tactile feedback and consistent performance.
In industrial settings, the Rotary Multi-Turn Potentiometer by SANNI is frequently employed in instrumentation and control panels. It serves as a critical component for adjusting parameters such as speed, temperature, and pressure. The potentiometer’s robust design and variety of shaft options enable it to withstand harsh environments and frequent use, ensuring long-lasting reliability. Engineers appreciate the precision offered by the 300Ω-3MΩ resistance range, which allows fine-tuning of electrical signals in complex control circuits.
Furthermore, the SANNI Rotary Potentiometer is widely used in consumer electronics, including remote controls, gaming devices, and household appliances. Its ability to provide accurate analog adjustments enhances user experience by enabling smooth and responsive control over device functions. The through-hole and DIP mount variants facilitate easy integration into printed circuit boards, making it a preferred choice for designers and manufacturers.
Overall, the SANNI Rotary Potentiometer stands out as a versatile and reliable rotary voltage divider potentiometer that meets the demands of diverse application occasions and scenarios. Whether in audio systems, industrial controls, or consumer electronics, this rotary analog adjustment device delivers consistent performance, precision, and durability, making it an indispensable component in modern electronic design.
SANNI offers comprehensive product customization services for our Rotary Potentiometer, manufactured in Dongguan, China. Our Rotary Electrical Potentiometer is designed with a durable combination of plastic and metal materials, ensuring reliable performance and longevity. Featuring a through hole/DIP mount type, it provides easy installation and secure placement in various applications.
Our Rotary Manual Adjustment Tool is engineered with a single gang configuration and a resistance tolerance of ±20%, meeting precise adjustment requirements. Additionally, the potentiometer boasts an insulation resistance of 100MΩ minimum, guaranteeing excellent electrical isolation and safety.
As a trusted Rotary Electrical Position Sensor, the SANNI Rotary Potentiometer can be customized to fit your specific needs, whether for industrial, automotive, or consumer electronics. Partner with SANNI to get tailored solutions that combine quality, accuracy, and durability.
For technical support and services related to the Rotary Potentiometer product, please refer to the detailed product datasheets and user manuals available on our website. Our technical support team is dedicated to assisting you with installation guidance, troubleshooting, and optimization of the rotary potentiometer to meet your application requirements.
We offer comprehensive services including calibration, repair, and replacement under warranty conditions. For customization requests or advanced technical inquiries, please provide detailed information about your application and operating environment to ensure the best possible support.
Additional resources such as application notes, FAQs, and software tools can also be accessed online to help maximize the performance and longevity of your rotary potentiometer.
Ensure that all handling and installation procedures comply with the safety standards described in the product documentation to prevent damage and guarantee optimal functionality.
Each Rotary Potentiometer is carefully packaged in an anti-static bag to prevent any damage from electrostatic discharge during transit.
The potentiometer is then placed in a sturdy cardboard box with adequate cushioning material to protect it from shocks and vibrations.
For bulk orders, multiple units are securely packed in larger boxes with dividers to avoid any movement and potential damage.
All packages are clearly labeled with product information and handling instructions to ensure safe and efficient delivery.
Shipping is carried out through reliable courier services with tracking options available for customer convenience.
We take utmost care to ensure that your Rotary Potentiometer arrives in perfect working condition and on time.
